■ 최대 해상도 HDMI 4K * 2K와 3D 지원

■ UTP cable 1개 Line으로 HDMI 신호, Control

    signal, Power 공급

■ 양방향 RS-232C 신호 및 IR 신호 전송

■ Cat 5e/6/7 cable로 1080p @60Hz, 48bit

    color 신호를 80~100m 전송 지원

□ SPECIFICATION

■ 전송거리 : 80~100m at 1080@60Hz

■ Resolution : HDMI 3D, 4K

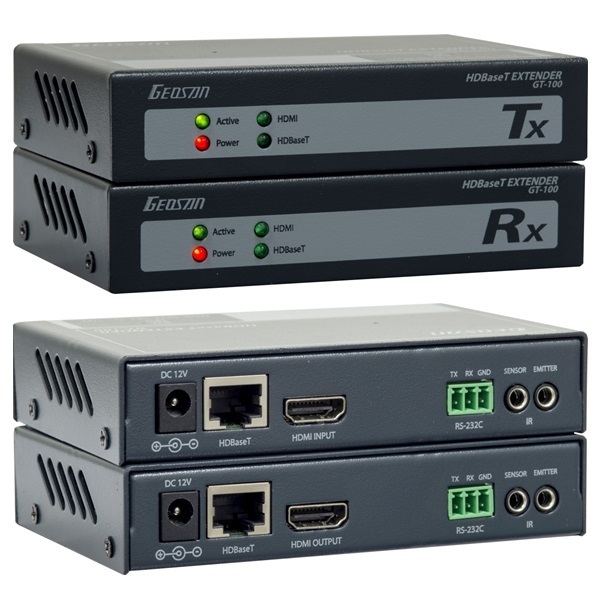

■ Connector

    -TX : (1)HDMI, (1)RJ45:HDBT, (1)IR/Sensor, (1)RS-232C

    -RX : (1)HDMI, (1)RJ45:HDBT, (1)IR/Sensor, (1)RS-232C

■ LED Display : Power LED, Active LED,

    HDBT 연결 LED, HDCP LED

■ 입력전원 : AC-DC +12V, 1A(15W이하)

■ SIZE : 120mm×75mm×25mm(0.5Kg) *2
